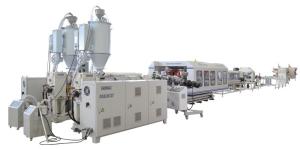

High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine

Name: High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine
Brand: Suba Machinery
Price: 1 USD

Wholesale High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine from china suppliers

Place of Origin : Shandong China

Packaging Details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Price : Customized

Brand Name : Suba Machinery

Model Number : SL180

Certification : ISO9001/CE

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 5 units per month

Delivery Time : 30-120 work days

Cooling way : Water cooling

Structure : Horizontal

Pipe Material : PE/PP/HDPE/PVC

Voltage : 380v or customized

Installed Power : 302kw

Operation Power : 88-120kW

Dimension(L*W*H) : 27m*3m*2.8m

Warranty : 1 Year

Moulds number : 36 pairs

Chain length : 4475mm

Pipe diameter : OD40mm to OD200mm

Material : HDPE PE PP PVC

Usage : Bridge prestressed pipe, bridge prestressing, cable protection

Contact Now

**High speed * Excellent performance * Easy Operation System**

* Stable structure

High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine

SUBA LINES FEATURES

Focusing
Innovation technologies
Advanced designs
High quality
High speed
Excellent performance
Easier operation system
Rich experience in profile design
Worry-free after-sales service

EQUIPMENT FEATURES

On SL180 corrugated tube machine, the small-sized and mid-sized double wall corrugated pipes are produced for cable protection, water collection, ventilation system and bridge.
The corrugator is a vailable in two different lengths.
High and stable vacuum technology.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

High Speed Corrugated Tube Equipment Dual Wall Plastic Pipe Forming Machine

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Worry-free after-sales service!

Timely instanllation, commissioning and personnel training services.
Rapid trouble shooting-quick response, quick redolution.
Remote control services.
Collect and study customers' feedback and suggestions.

Please don't hesitate to contact us!!!
